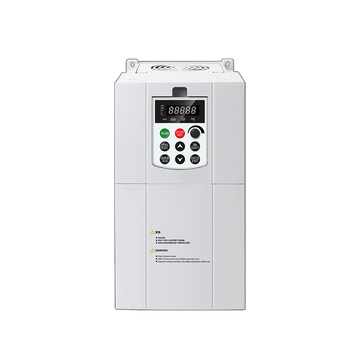

SWIPOWER 7.5KW 10HP Variable Frequency Drive Inverter 1 to 3 Phase VSD VFD 34A 380V
Prix habituel
$122.00USD
Prix réduit
$122.00USD
Prix habituel
Prix unitaire
Enregistrer
SWIPOWER 7.5KW 10HP Variable Frequency Drive Inverter 1 to 3 Phase VSD VFD 34A 380V
Product description
Shipping & Return
【Smart Digital Display】:After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
【Multiple Protection】: Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, restart protection, etc.
【Wide Application】:The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
Rated Parameters
|
MODEL
|
Nominal Capacity
(KVA)
|
Input Current
(A)
|
Output Current
(A)
|
Applicable Motor Output
(KW)
|
Applicable Motor Output
(HP)
|
Overall Dimension
（MM）
|
Installation Dimension
（MM）
|
|
3.7KW
|
6 | 10.5 |
9
|
3.7 | 5 | 194*97*153 | 184*85 |
| 5.5KW | 11 | 13.9 | 13 | 5.5 | 7.5 | 194*97*153 | 184*85 |
| 7.5KW | 15 | 18.9 | 17 | 7.5 | 10 | 245*124*168 | 235*107 |
| 11KW | 30 | 27.8 | 25 | 11 | 15 | 245*124*168 | 235*107 |
| 15KW | 37 | 37.9 | 32 | 15 | 20 | 310*164.8*195.2 | 147*298 |
| 18.5KW | 44 | 46.7 | 37 | 18.5 | 25 | 310*164.8*195.2 | 147*298 |
| 22KW | 60 | 55.6 | 45 | 22 | 30 | 310*164.8*195.2 | 147*298 |
Specifications
|
Functional Descriptions
|
Specifications
|
|
INPUT
|
|
|
Input Voltage
|
AC,1PH,220V(-15%) ~ 240V(+10%)
AC,3PH,380V(-15%) ~ 440V(+10%)
|
|
ated Frequency
|
50/60 Hz
|
|
Frequency Range
|
± 5% (47.5 ~ 63Hz)
|
|
OUTPUT
|
|
|
Output Voltage
|
0- Input Voltage
|
|
Maximum Output
Frequency
|
0.1 ~ 500HZ
|
|
Output Power
|
Please refer to Rated Parameter table
|
|
Output Current
|
Please refer to Rated Parameter table
|
|
BASIC PARAMETERS
|
|
|
Highest frequency
|
Vector control: 0～500Hz
|
|
V/F control：0～500Hz
|
|
|
Carrier frequency
|
0.8KHz~8KHz(Support up to 16KHz carrier frequency)
|
|
|
Adjusted automatically according to the load characteristics
|
|
Input frequency resolution
|
Digital setting: 0.01Hz
|
|
|
Analog setting: Highest frequency× 0.025%
|
|
Control mode
|
Open-loop vector control (SVC)
V/F control
|
|
Starting torque
|
0.5Hz/150% (SVC)
|
|
Adjustable speed ratio
|
1：100 (SVC)
|
|
Speed control accuracy
|
± 0.5% (SVC)
|
|
Overload capability
|
150% of rated current: 60 seconds
170% of rated current: 12 seconds
190% of rated current: 1.5 seconds
|
|
Torque boost
|
Auto torque boost; Range of manual torque boost 0.1%~30.0%
|
|
V/F curve
|
Three types: Linear, Multi-point, square curve (1.2 power, 1.4 power, 1.6 power, 1.8 power, 2 power)
|
|
V/F separation
|
Full separation, Half separation
|
|
Acceleration and deceleration time
|
Linear and S-curve acceleration and deceleration modes available. The range of acceleration and deceleration time is 0.0~6500.0s.
|
|
DC braking
|
DC braking frequency: 0.00Hz ~ Maximum frequency
|
|
Braking time: 0.0s~36.0s
|
|
|
Braking current value: 0.0%~100.0%
|
|
|
JOG control
|
JOG frequency range: 0.00Hz ~ Maximum frequency (5Hz in default).
|
|
|
JOG acceleration and deceleration time: 0.0s~6500.0s.
|
|
Built-in PID
|
Simplify the establishment of a closed-loop control system
|
|
Automatic voltage regulation (AVR)
|
Keep the output voltage in stable when the grid voltage fluctuates.
|
|
Stall prevention from overvoltage and overcurrent
|
The current and voltage are limited automatically during operation to prevent frequent tripping due to over-current and over-voltage.
|
|
Rapid current limit
|
Reduce the risk of over-current faults to keep VFD operated normally.
|
|
Torque limit and control
|
Limit the torque automatically during operation to prevent frequent tripping
due to over-current.
|
|
Braking unit
|
Built-in braking unit for 18.5KW and below models
|
|
SPECIAL FEATURES
|
|
|
Deceleration to stop
|
In case of power loss, the energy from load feedback is used to compensate and decelerate the motor until standstill, to prevent mechanical damage.
|
|
Rapid current limit
|
Reduce the risk of over-current faults to keep VFD operated normally.
|
|
Timer control
|
Setting range: 0.0Min ~ 6500.0Min
|
|
Communication
|
Modbus
|
|
INPUT & OUTPUT
|
|
|
Command source
|
Operation panel, control terminal and serial communication port.
|
|
Frequency source
|
Digital setting, Analog voltage setting, Analog current setting, Pulse setting and Serial port setting.
|
|
Auxiliary frequency source
|
5 options to provide flexible auxiliary frequency fine-tuning and frequency synthesis.
|
|
Input terminals
|
4 digital input terminals, one of which supports high-frequency pulse input up to 50kHz
|
|
Output terminals
|
1 analog input terminal supporting 0 ~ 10V voltage input or 0 ~ 20mA
current input
|
|
DISPLAY BUTTONS
|
|
|
LED display
|
Display parameters
|
|
Key lock and function selection
|
It allows users to partially or fully lock the keys or define operated range for partial keys to prevent misoperation
|
|
Protective function
|
Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under-voltage protection, overheat protection, overload protection and etc.
|
|
ENVIRONMENT
|
|
|
Storage temperature
|
-20°C ~ 60°C
|
|
Operation temperature
|
-10°C ~ 50°C (If temperarture is higher than 40°C, the output capacity will be derated 1% per 1°C increase)
|
|
Storage humidity
|
＜90%RH
|
|
Operation humidity
|
＜90%RH
|
|
Noise Level
|
50dBA max.
|
|
OTHERS
|
|
|
EMC
|
Standards:
|
|
IEC 61800-3, C3
|
|
|
Safety
|
Standards:
|
|
IEC 61800-5-1
|
|
|
INTERACE
|
|
|
Communication Port
|
RS-485
|
