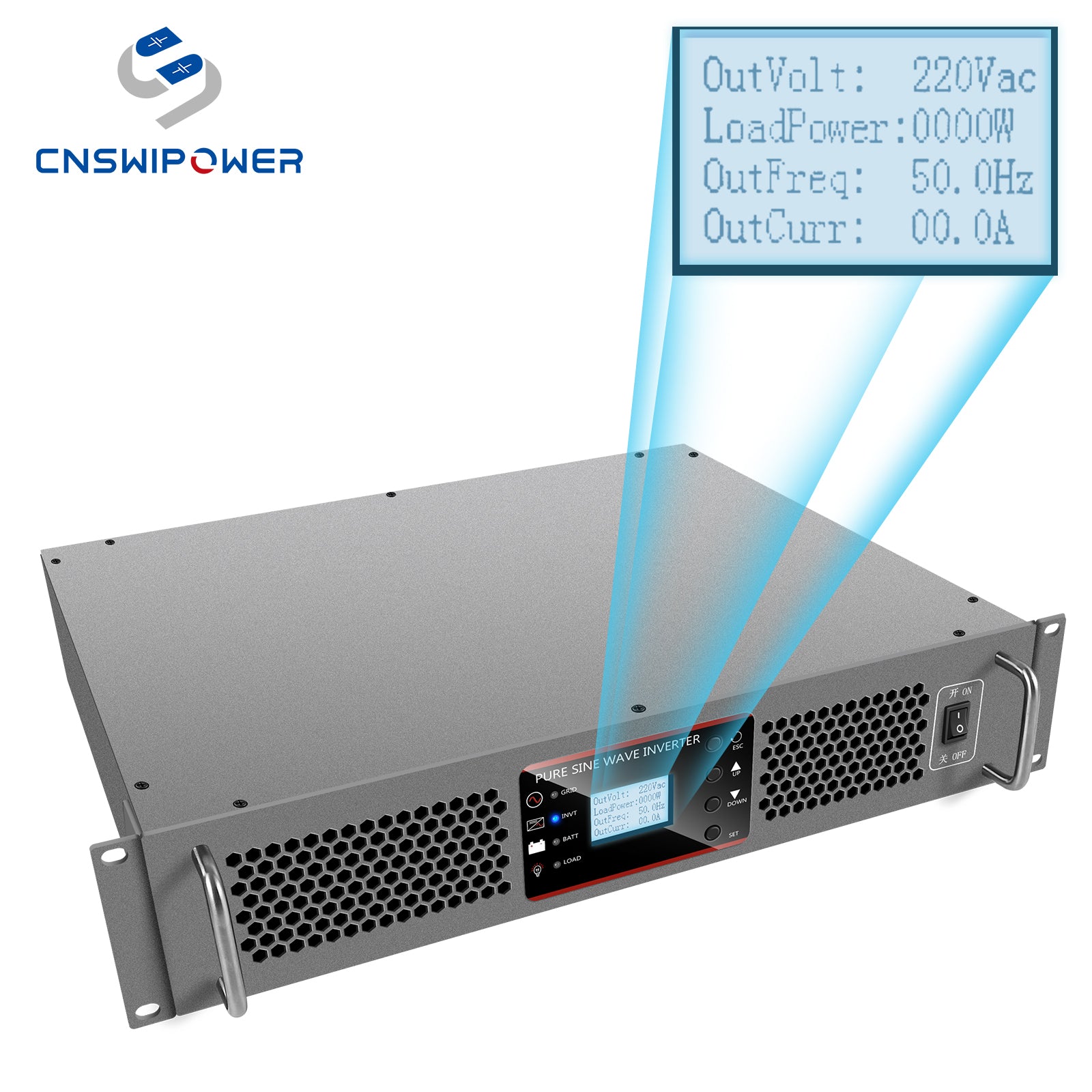

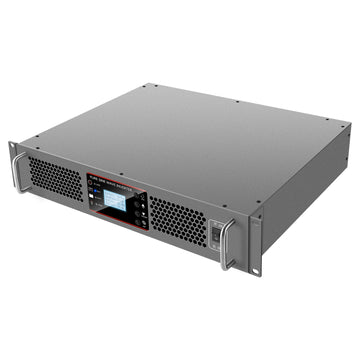

48 Volt 1000VA 19 Inch For Industry And DC-to-AC Telecom Rack Mount Inverter 110V/120V/220V/240V/230V
Regular price
$370.00USD
Sale price
$370.00USD
Regular price
Unit price
Save
48 Volt 1000VA 19 Inch For Industry And DC-to-AC Telecom Rack Mount Inverter 110V/120V/220V/240V/230V
Product description
Shipping & Return
| Item |
ST1000-48-220 |
ST1000-48-110 |
| Rated Input Voltage |
48VDC |
| Input Voltage Range | 40-60VDC |
| Under Voltage Warning Threshold | 42VDC |
| Input Protection | Reverse polarity protection |
|
Psophometric Noise Voltage |
≤ 1.0mV ITU-T O.41 (16.66 to 6000Hz) |
| Wide Band Noise |
<1.0mV (psophometric, 25Hz to 5kHz)
<20mVrms (25Hz to 20kHz)
|
| Peak to Peak Noise |
<150mV up to 100MHz
|
| Output Voltage | 220VAC(±5%) 230VAC(±5%) 240VAC(±5%) |
100VAC(±5%) 110VAC(±5%) 120VAC(±5%) |
| Output Frequency |
50/60±0.1Hz |
| Over Voltage Threshold | 276Vac | 138Vac |
| Under Voltage Threshold | 176Vac | 89Vac |
| Output Continuous Power | 800W |
| Surge power | 1600W |
| Output Wave | Pure sine wave |
| Distortion THD | THD≤3%① | THD≤5%① |
| Efficiency | 91% | 90% |
| No- load current | ＜0.58A | ＜0.58A |
| Transfer Time |
8ms when Inverter → Mains AC;
10ms when Mains AC → Inverter
|
| Dimension |
88.8×255×440mm
|
| Weight |
5KG
|
| Current Limitation |
Electronic current limitation at overloads and short circuits
|
| Isolation AC-enclosure |
Basic isolation (Pri-Gnd) 2121Vdc/1min
|
| Isolation AC-DC |
Reinforced isolation (Pri-Sec) 4242Vdc/1min
|
| Surge Protection |
EN61000-4-5, ANSI/IEEE C62.41, STD 587- 1980
|
| Dynamic Response |
Better than ±10% according to IEC 62040-3 Class 1
|
| Over Load Protection |
1.0x Inom permanent overload capacity @30°C (86°F)
1-1.25 x Inom >30s
1.25-1.5 x Inom >8s
|
